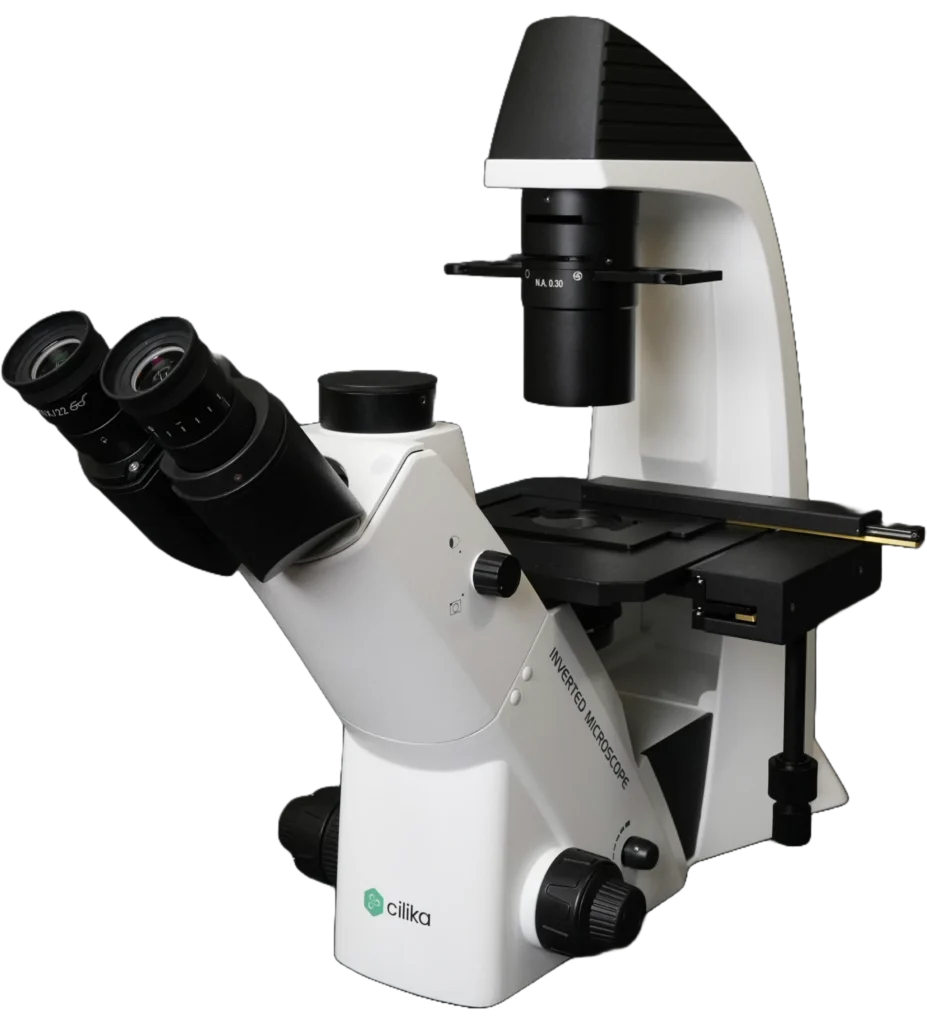

Cilika BT invi
Our flagship inverted microscope designed for everyday lab robustness — available as a conventional optical unit or the fully digital model, and convertible to digital in seconds so your lab can scale imaging capabilities as needs evolve
CILIKA: Zoom it. See it. Share it.
True view technology
With CILIKA’s patented Trueviev technology, you can capture 100% of the circular field exactly as the view, unlike the conventional microscope’s 50% reduced view. Observe and share exactly what you want or simply the whole field.
Preloaded Cilika software
The preloaded Cilika software, designed exclusively for Cilika microscopes, enables micrometry and annotations directly on the sample during diagnosis.
Telepathology
CILIKA microscopes offer an advanced digital setup for telepathology, enabling seamless remote collaboration. Professionals can live stream whole slides in real-time for second opinions and diagnoses, while also capturing, storing, and sharing high-resolution images and videos via the cloud for enhanced accessibility and workflow efficiency.
Highlighted Features
Robust Inverted Optics & Sample Access
Classic inverted performance with generous working distance and precise stage control for comfortable observation of culture dishes, tissue flasks and live samples. Built to support routine lab procedures, teaching and reproducible imaging.
Seamless Upgrade Path to Digital

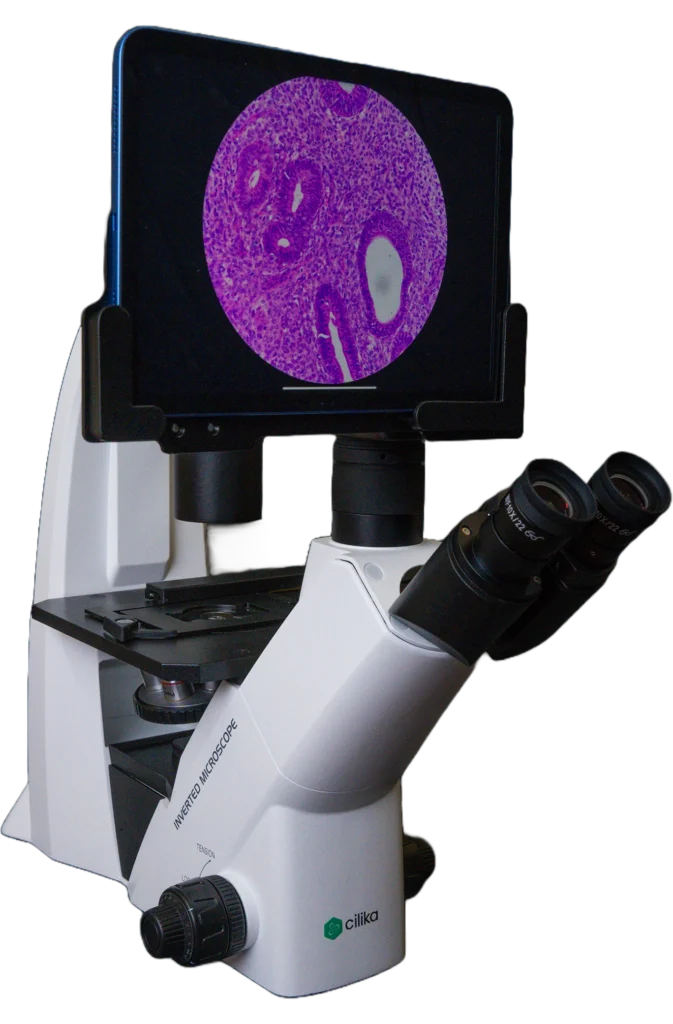

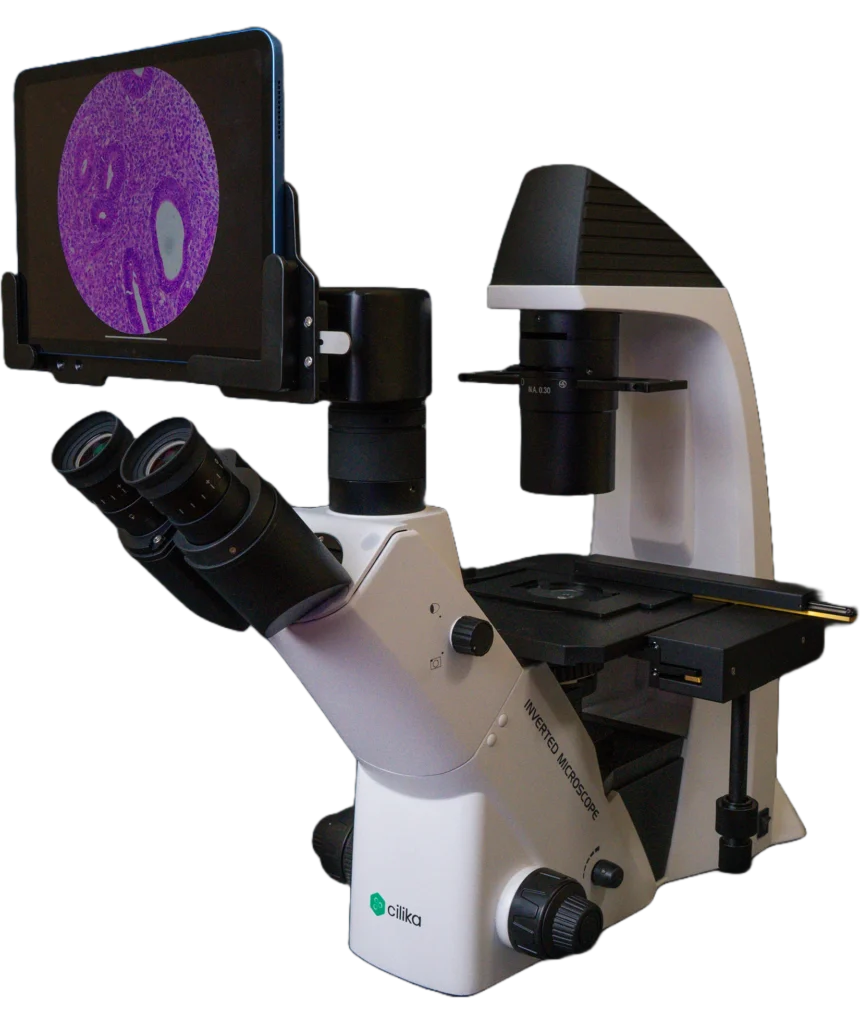

Choose the conventional BT INVI today and snap on the digital module when you’re ready — instant live view, capture and sharing without replacing the optical core. The modular conversion preserves your investment and gives you both worlds: simple optics now, digital power later.
Expandable Accessory Ecosystem
Scale functionality with optional fluorescence filter sets, camera choices (from plug-and-play to advanced sensors), articulated or boom stands, and software packages for measurement and telepathology. Configurable to match budgets and evolving workflow requirements.
Ready to experience the future of microscopy?
Book a personalized demo; either in person with your sample or online in just 2 minutes
Schedule Demo
Technical Specifications
| Cilika BT Invi | |
|---|---|
| Objectives | Infinity optical system |
| Eyepiece lens | Binocular 10x/FN 22 Digi head 10x/FN 20 |
| Nosepiece | Quintuple |
| Optics | Infinity optical system |
| Display unit | Apple iPad 10.9", 11" |
| Camera | 12 MP |
| Sample stage | Mechanical stage Stage Size 210 x 241 mm, Round Slide Size Φ 110 mm Culture Dish Holder 54 mm |
| Focussing movement | Coaxial Coarse & Fine Focusing System, Coarse Stroke 42mm /Rotation, Fine Stroke 0.2mm /Rotation, Minimum Reading 2μm |
| Condenser | Long Working Distance, Quickly Detachable, N.A.0.3 Working Distance 72 mm (With Condenser), 195 mm (Without Condenser) |
| Illumination | Kohler Illumination, 3W/LED With intensity control |
| Accessories | Fluorescence 4 filter Phase contrast |
