CILIKA Inverted Microscopes

Cilika Inverted Microscopes bring innovation and precision to your research with advanced digital upgrades. Designed for effortless tablet and smartphone compatibility, they feature research-grade optics and TrueView Technology for exceptional clarity. Ideal for biological and material sciences, these microscopes provide unparalleled accuracy and versatility, making them the perfect choice for professionals and researchers seeking high-performance imaging solutions.

Schedule Demo

CILIKA: Zoom it. See it. Share it.

True view technology

With CILIKA’s patented Trueview technology, you can capture 100% of the circular field exactly as the view, unlike the conventional microscope’s 50% reduced view. Observe and share exactly what you want or simply the whole field.

Ergonomic design

CILIKA microscopes are designed to perfection keeping in mind the long-term occupational hazards of using microscopes. Our digital microscopes are ergonomically designed to ensure comfort and care and deliver the best results simultaneously.

Telepathology

CILIKA microscopes offer an advanced digital setup for telepathology, enabling seamless remote collaboration. Professionals can live stream whole slides in real-time for second opinions and diagnoses, while also capturing, storing, and sharing high-resolution images and videos via the cloud for enhanced accessibility and workflow efficiency.

Other Features

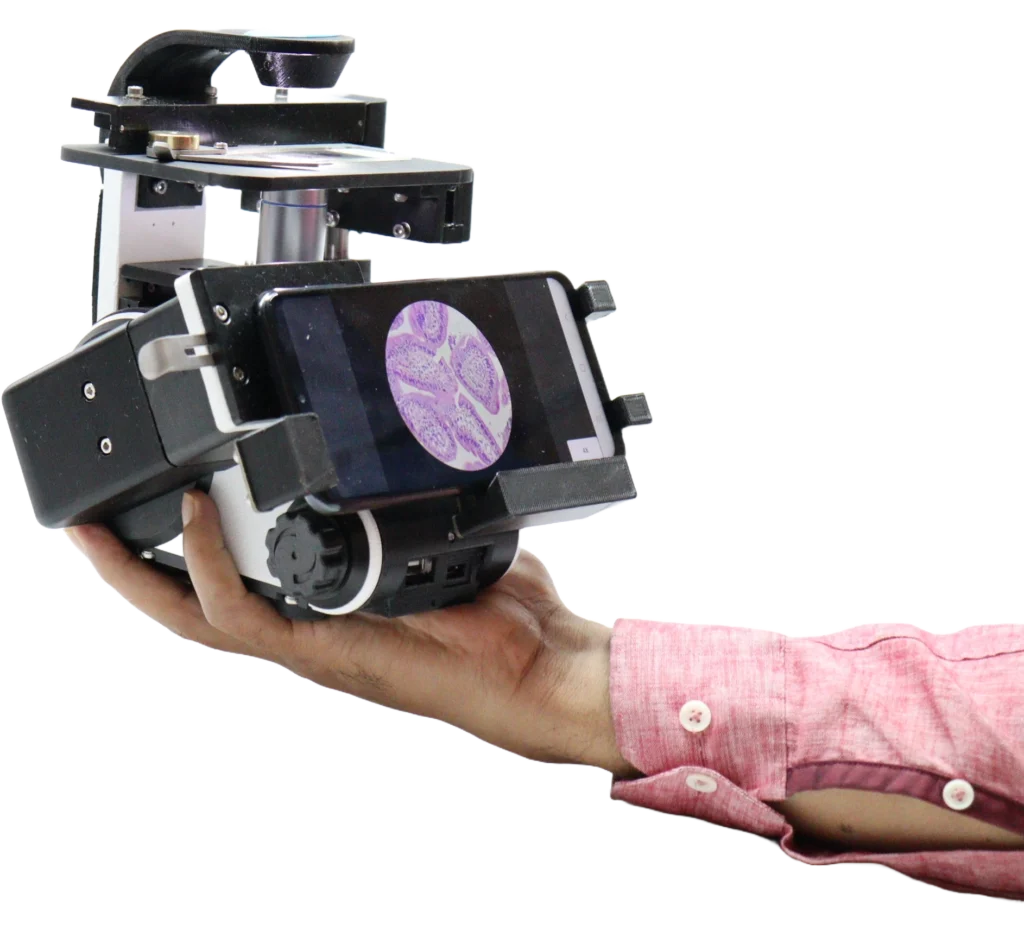

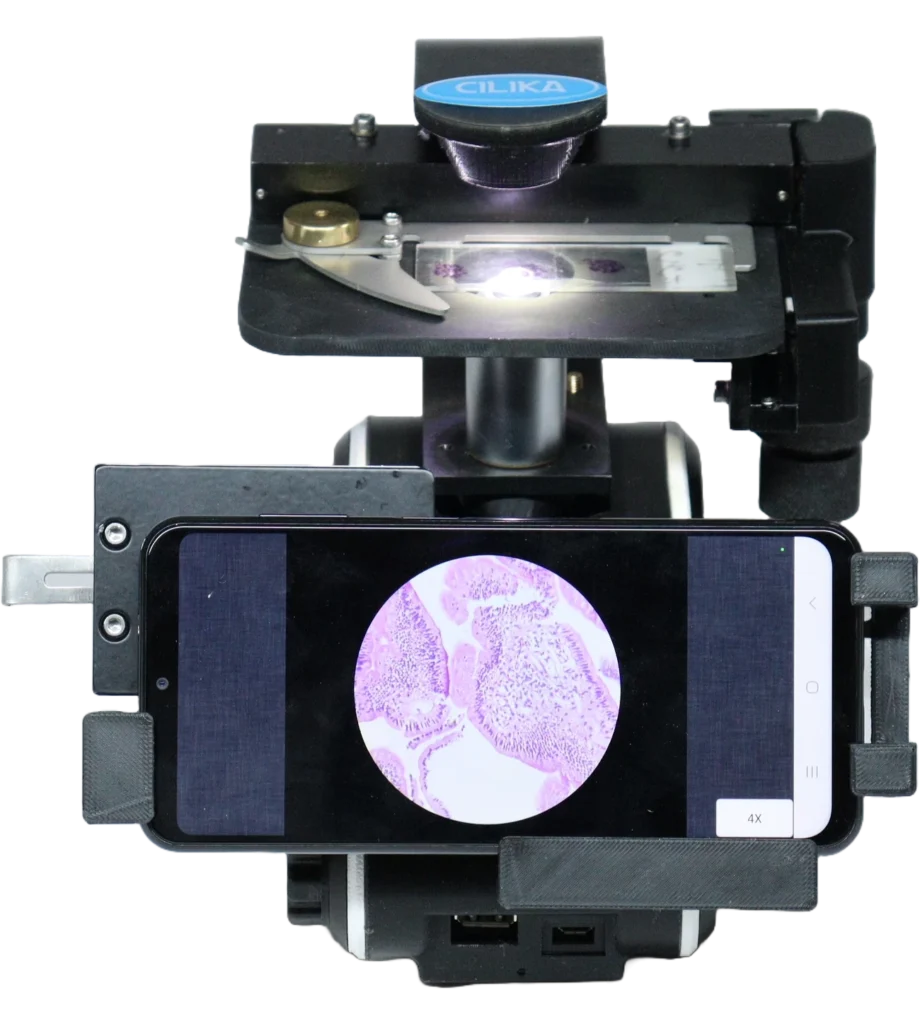

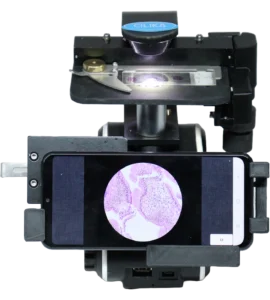

Digi invi (s)

Inverted brightfield digital microscope with integrated Smartphone display With a compact design and weighing just 3 kg, this battery-operated microscope offers excellent portability for easy transport and use

Know more

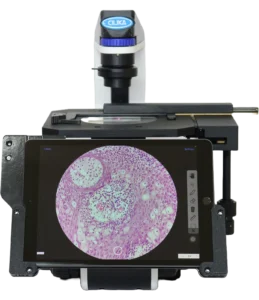

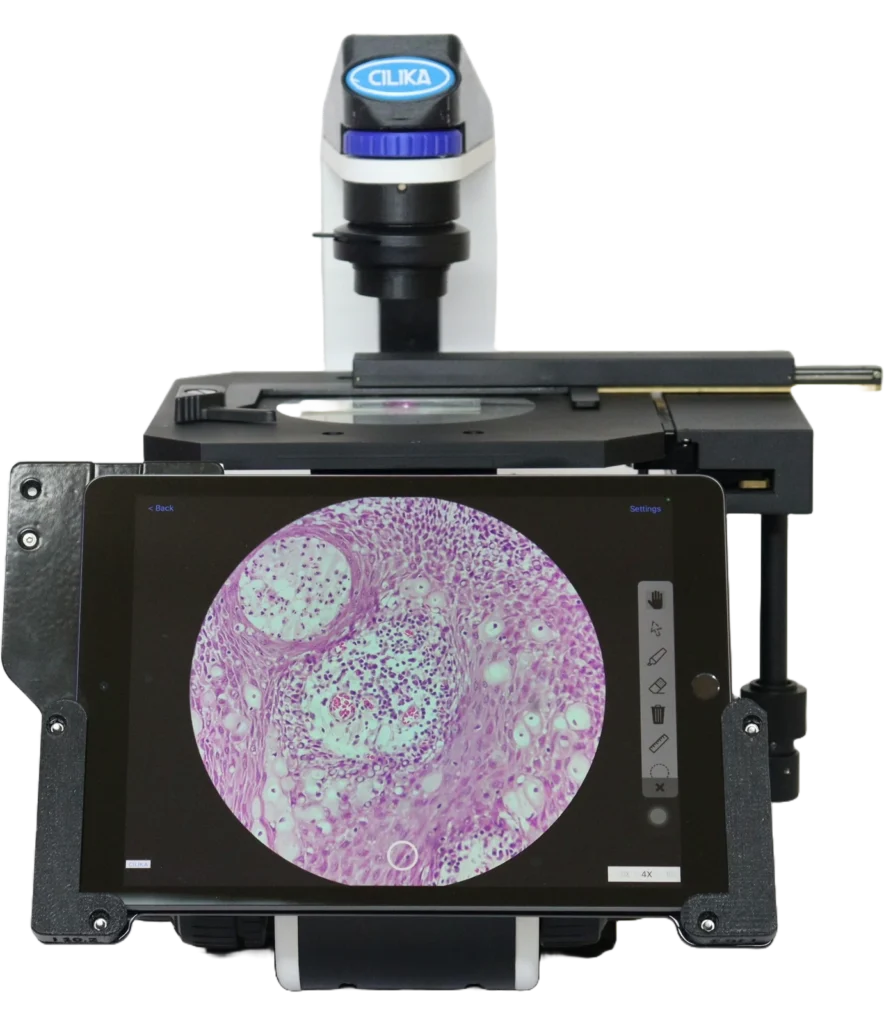

Digi invi

Inverted brightfield digital microscope with integrated tablet display Ergonomically designed it can also fit seamlessly into laminar flow cabinets and is equipped with four objective lenses for versatile magnification

Know more

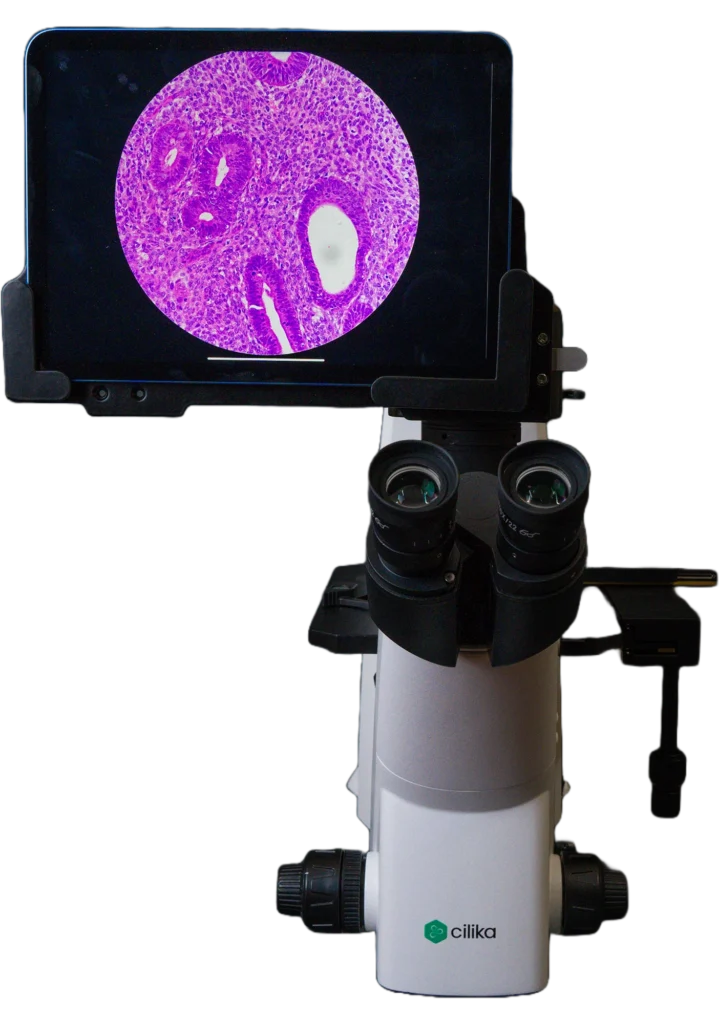

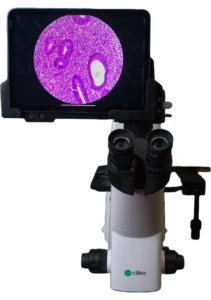

BT invi

Trinocular inverted microscope upgradable with digital attachment for tablet/smartphone compatibility Designed as a compact unit with an integrated digital system, reducing the need for additional equipment and minimizing the overall footprint. It features a robust, vibration-resistant base that ensures stable and reliable observations, even during extended use.

Know more

Technical Specifications


	Digi invi (s)	Digi invi	BT invi
Objectives	Infinity optical system	Infinity optical system	Infinity optical system
Eyepiece lens	Binocular 10x/FN 20 Digi head 10x/FN 20	Binocular 10x/FN 20 Digi head 10x/FN 20	Binocular 10x/FN 22 Digi head 10x/FN 20
Nosepiece	Single lens slot	Quadruple	Quintuple
Optics	Infinity optical system	Infinity optical system	Infinity optical system
Display unit	Any smartphone with a side camera position	Apple iPad 10.9", 11"	Apple iPad 10.9", 11"
Camera	As per smartphone	12 MP	12 MP
Sample stage	Mechanical Stage without XY motion, Size 140x227mm	Mechanical Stage Size 210x241mm, Round Slide Size diameter 110mm Cultural dish holder 54mm	Mechanical stage Stage Size 210 x 241 mm, Round Slide Size Φ 110 mm Culture Dish Holder 54 mm
Focussing movement	Coaxial Coarse & Fine Focusing System, Coarse Stroke 42mm /Rotation, Fine Stroke 0.2mm /Rotation, Minimum Reading 2μm	Coaxial Coarse & Fine Focusing System, Coarse Stroke 42mm /Rotation, Fine Stroke 0.2mm /Rotation, Minimum Reading 2μm	Coaxial Coarse & Fine Focusing System, Coarse Stroke 42mm /Rotation, Fine Stroke 0.2mm /Rotation, Minimum Reading 2μm
Condenser	N.A.0.3	Long Working Distance, Quickly Detachable, N.A.0.3 Working Distance 72 mm (With Condenser), 195 mm (Without Condenser)	Long Working Distance, Quickly Detachable, N.A.0.3 Working Distance 72 mm (With Condenser), 195 mm (Without Condenser)
Illumination	Kohler Illumination, 1W/LED With intensity control	Kohler Illumination, 3W/LED With intensity control	Kohler Illumination, 3W/LED With intensity control
Accessories			Fluorescence 4 filter Phase contrast
