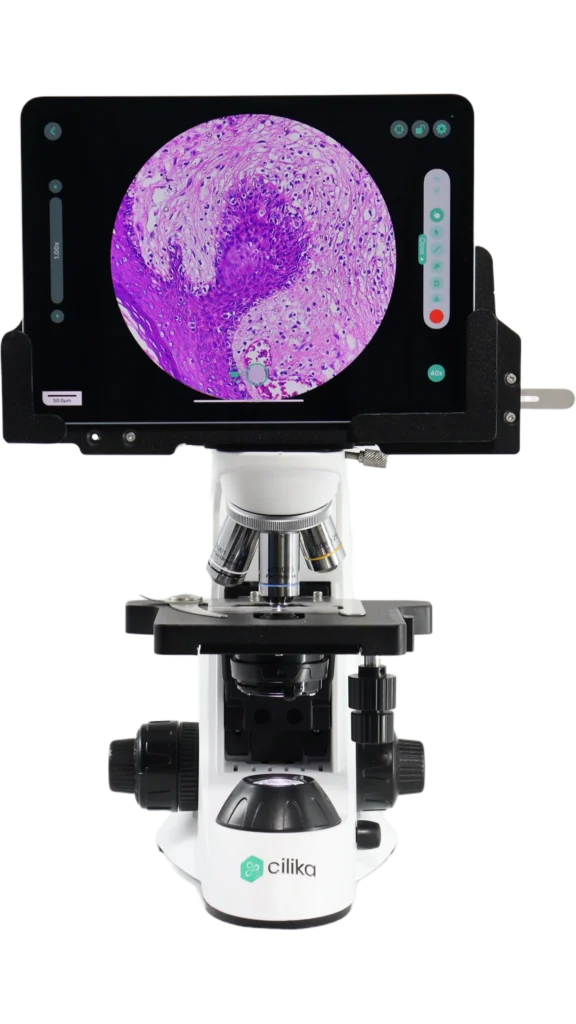

Cilika BTP Dual Head
Collaborative Digital Microscopy Multi-user platform enabling simultaneous observation and enhanced teaching capabilities
CILIKA: Zoom it. See it. Share it.
True view technology
With CILIKA’s patented Trueviev technology, you can capture 100% of the circular field exactly as the view, unlike the conventional microscope’s 50% reduced view. Observe and share exactly what you want or simply the whole field.
Preloaded Cilika software
The preloaded Cilika software, designed exclusively for Cilika microscopes, enables micrometry and annotations directly on the sample during diagnosis.
Telepathology
CILIKA microscopes offer an advanced digital setup for telepathology, enabling seamless remote collaboration. Professionals can live stream whole slides in real-time for second opinions and diagnoses, while also capturing, storing, and sharing high-resolution images and videos via the cloud for enhanced accessibility and workflow efficiency.
Highlighted Features

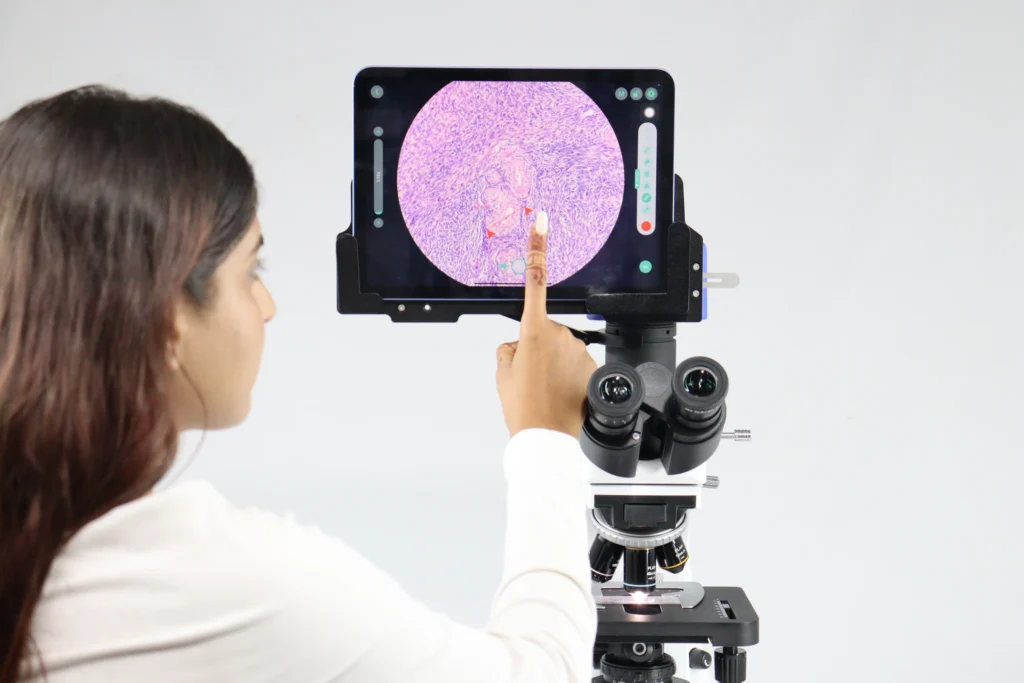

Dual Viewing Excellence - Best of Both Worlds
Seamlessly switch between traditional eyepiece viewing and iPad display without changing focus or losing field position. When digital clarity needs verification, instantly validate findings through high-quality eyepieces. This dual capability ensures diagnostic confidence while maintaining the speed and convenience of digital workflows - making it the preferred choice for senior pathologists and critical diagnoses.
Enhanced Teaching & Training Platform
Live stream to multiple devices simultaneously for real-time consultations and teaching. Second opinion requests can be shared instantly with eyepiece-verified accuracy. Multi-user annotation allows collaborative diagnosis with colleagues worldwide. Perfect for tumor boards, teaching sessions, and subspecialty consultations requiring the highest diagnostic confidence
Superior Ergonomic Design
Variable viewing angles (15-45°) accommodate different user heights and preferences. Effortless switching between eyepiece and digital viewing prevents neck strain during long diagnostic sessions. Symmetrical control layout and low-torque focus mechanisms reduce hand fatigue. Designed specifically for pathologists who spend hours in diagnostic work.

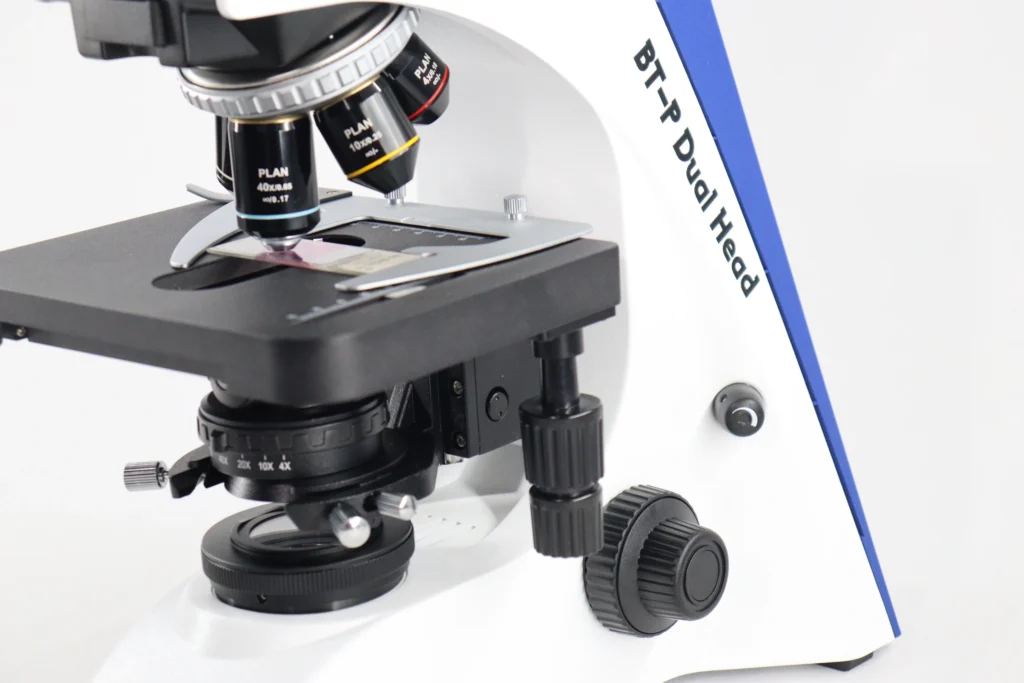

Technical Specifications
| BTP Dual Head | |
|---|---|
| Objectives | Premium infinity corrected |
| Eyepiece lens | 10x/FN 20 |
| Nosepiece | Quintuple |
| Optics | Infinity optical system |
| Display unit | Apple iPad 10.9", 11" |
| Camera | 12 MP |
| Sample stage | Rackless double plate Stage Size 182*140mm Travel range 77*52mm |
| Focussing movement | Coaxial Coarse & Fine Focusing Coarse Focus - Travel Range: 25mm, Fine Focus - Travel Range: 0.2 mm/rotation |
| Condenser | Swing out condenser NA 0.9/0.13 with iris diaphragm |
| Illumination | Kohler Illumination, 3W/LED With intensity control |
| Accessories | Fluorescence 4 filter Phase contrast Darkfield Polarization (Polarizer and Analyzer) |
